- Posted by alex@engineeredsource.com
- On October 7, 2024
- 0 Comments
These custom 3-wave washers were manufactured domestically in the USA using DFARS compliant 301 stainless steel material. The outside diameter was set to 1.325″ and the inside diameter to .975″. Raw material thickness was at 0.05″ +/-.015. Full certs were provided with the parts for our aerospace customer.
Read More
- Posted by alex@engineeredsource.com
- On September 21, 2023
- 0 Comments
These custom precision machined electronics parts were manufactured for our customer using 360 Brass Alloy material. All production was done domestically in the USA with full certs. The larger OD was set to .280″ +/-.005″ and the smaller OD was set to .250″ with the same tolerance. Overall thickness was set to .050″.
Read More
- Posted by alex@engineeredsource.com
- On August 1, 2023
- 0 Comments
These custom precision machined washers were manufactured for our electronics customer using 6061-T651 aluminum material with a flash hard anodize finish. The ID was set to 1.015-1.005″ and OD at 1.625″. One of the corners required a R.062 machined radius and the washer thickness had to be between .125″ and .135″. Full certs were provided […]
Read More
- Posted by alex@engineeredsource.com
- On February 15, 2022
- 0 Comments
These custom bent steel zinc washers were manufactured for our specialty OEM manufacturer using mild steel ranging in thickness from 1.8-2.0MM – the edges of the bent washer are actually used to clamp down the assembly so the thickness had to be just right to allow the application of the needed force without flattening out. […]
Read More
- Posted by alex@engineeredsource.com
- On August 8, 2019
- 0 Comments
We supplied our customer 10,000 pcs of these custom beryllium copper wave washers. They were manufactured domestically in the USA with a relatively long lead time of 14-16 weeks due to the material procurement timing involved. The ID measures .140 +/- .005″ and the OD when flat measures .490 +/-.01″. Thickness of the material is […]
Read More
- Posted by alex@engineeredsource.com
- On July 3, 2019
- 0 Comments
These custom steel spring washers were manufactured using high carbon steel material heat treated to 38-45 HRC with black oxide finish. When flat, the inside diameter measures .126″ and the outside diameter is at .245″. The thickness is set to .004″ +/- .005″ with our production parts mostly measuring around .007″ in thickness. In it’s […]
Read More
- Posted by alex@engineeredsource.com
- On April 3, 2019
- 0 Comments
A washer the size of these custom large square washers is typically destined for construction applications so we were surprised to get a request to get them made by our aerospace customer. 200 pieces were manufactured domestically measuring 3″ by 3″ by .5″ thickness, using A36 steel material with zinc plating per ASTM B633, SC2, […]
Read More
- Posted by alex@engineeredsource.com
- On November 19, 2018
- 0 Comments
These custom Geomet coated washers are produced and finished domestically using 3 runs of Geomet 500 coating. The washer itself is made using HV-140 steel material and is dimensionally almost identical to a standard DIN125A flat washer, with the thinner height being its only variation. The ID is 5.3-5.48MM, the OD is 9.64-10MM, and the […]
Read More
- Posted by alex@engineeredsource.com
- On July 17, 2018
- 0 Comments
This photo shows the painted wood screws and painted countersunk washers together with the paneling they are used on during the assembly process. Our customer calls this color Pacifica Grey and we supply a number of other sizes for both the wood screw and the washer in this matching color. All the parts are supplied […]
Read More
- Posted by alex@engineeredsource.com
- On October 9, 2017
- 0 Comments

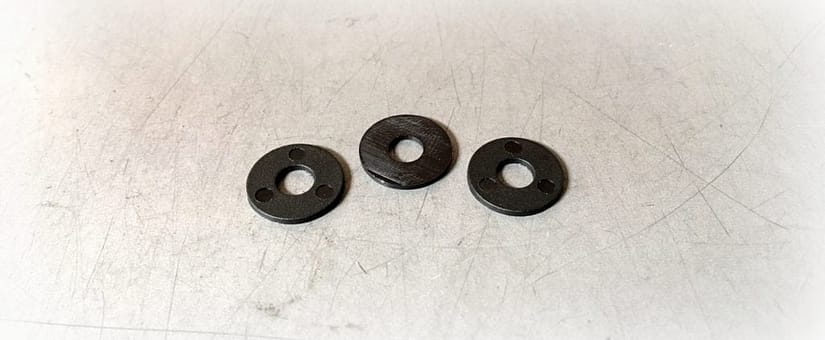

These are custom black nylon washers that we supply to one of our oldest customers on a recurring blanket purchase order basis. Average annual volume it approximately 800,000 pieces and we typically maintain at least a 6 month supply on hand at all times. Actual production time required is typically 6-7 weeks from order and […]
Read More
