- Posted by alex@engineeredsource.com
- On September 3, 2019
- 0 Comments

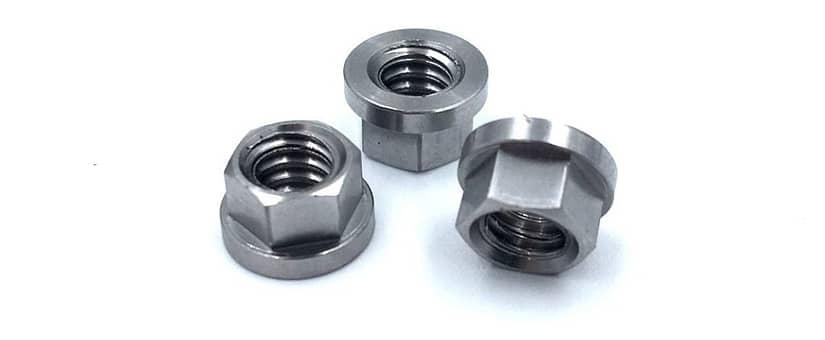

These custom flange nuts were manufactured domestically using 17-4PH stainless steel material with 10-24 internal thread. Overall height of the flange nut was .19″ +/-.01″ and the diameter of the flange was a critical dimension at .330″ +.000/-.015″. The hex was set to .250″ +.000/-.005″ across the flats. Our internal part number is NRNS-10-117-4 and […]
Read More
- Posted by alex@engineeredsource.com
- On August 30, 2019
- 0 Comments

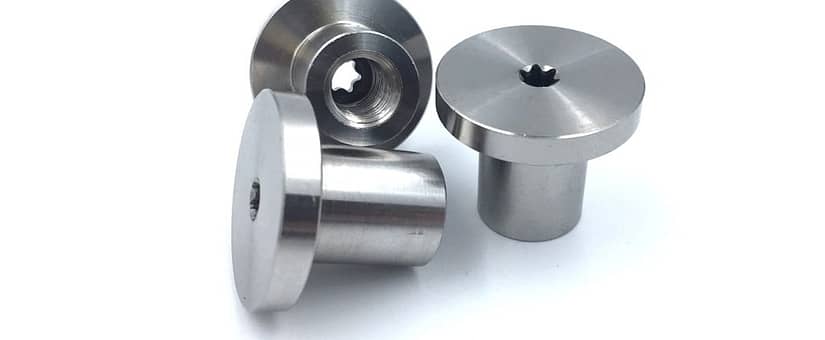

These custom binding posts were manufactured using 316 stainless steel material, with 3/8 coarse internal thread tapped as close to the head as possible and a T30 drive cold headed all the way through. The head diameter is 1.13″ head height at .19″ +/- .01″. The shoulder outside diameter is set to .63″ and measures […]
Read More
- Posted by alex@engineeredsource.com
- On June 21, 2019
- 0 Comments

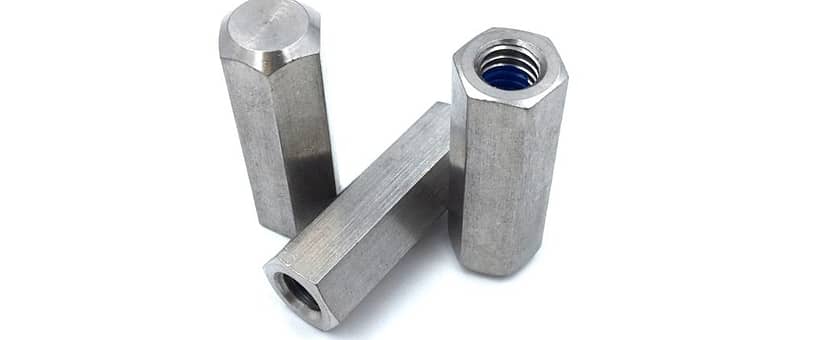

We had 10,000 pieces of these custom coupling nuts with nylon patch produced for our customer using 18-8 stainless steel material with partial internal thread. The drilled hole depth was at 19MM max and 16MM of that depth was to be threaded. Across the flats measures .500″ and overall length at 1.5″. The undrilled side […]
Read More
- Posted by alex@engineeredsource.com
- On March 19, 2019
- 0 Comments

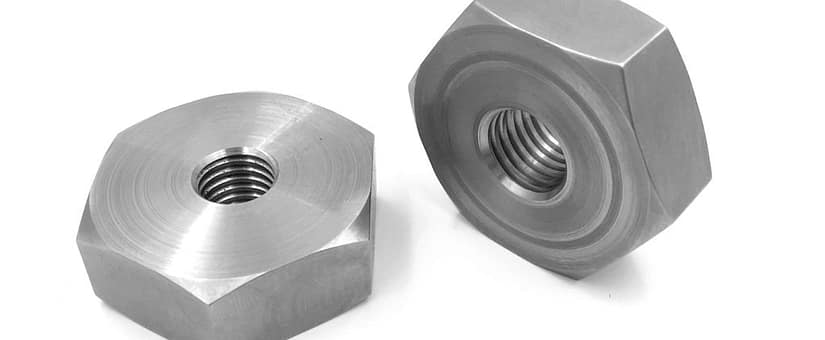

These oversize custom machined hex nuts were made domestically using plain low carbon steel material, to be used in a custom u-bolt/plate combination after all 3 items went through a zinc plating process. Width across the flats was set at 2″ for both the 3/4-10 and the 5/8-11 internal thread versions, and the height was […]
Read More
- Posted by alex@engineeredsource.com
- On September 4, 2018
- 0 Comments
We had 100 pcs of this mating custom 316L machined hardware produced domestically with a lead time of approximately 4 weeks. These 100 pcs were to be used in testing prior to larger volume production. The rod pieces measures 90MM in overall length and the knurled nut measures 17MM in overall height. Getting the nut […]
Read More
- Posted by alex@engineeredsource.com
- On August 17, 2018
- 0 Comments

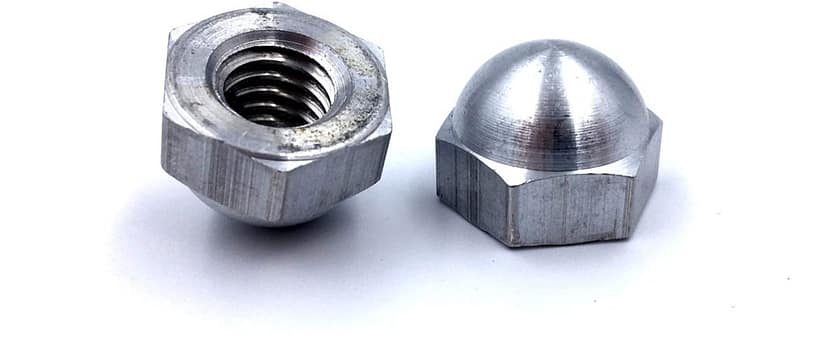

Our customer required matching custom aluminum cap nuts for renovation of a historical building and only had a few samples to work from without any dimensional drawings. We used those samples to recreate the pictured replicas using plain aluminum material with 3/8-16 internal thread. 500 pieces were produced for our customer’s need and were provided […]
Read More
- Posted by alex@engineeredsource.com
- On April 14, 2017
- 0 Comments
These are custom hex nuts we supplied to one of our long time aerospace customers, made using 18-8 stainless steel to print with a single drilled corner on each nut. The parts were domestically made with a lead time of 4-6 weeks for the initial release and incorporated a fine 1/4-28 thread. In terms of […]
Read More
- Posted by alex@engineeredsource.com
- On January 23, 2017
- 0 Comments
These are specialty 50FM-172 flexlock nuts with a locking machined shoulder we supply to our aerospace customer on a 12 month blanket as-released purchase order basis. It is made in the USA in plain 303 stainless steel material and we supply it with full documentation, including signed C of C, DFAR material cert, and dimensional test […]
Read More
- Posted by alex@engineeredsource.com
- On October 14, 2016
- 0 Comments

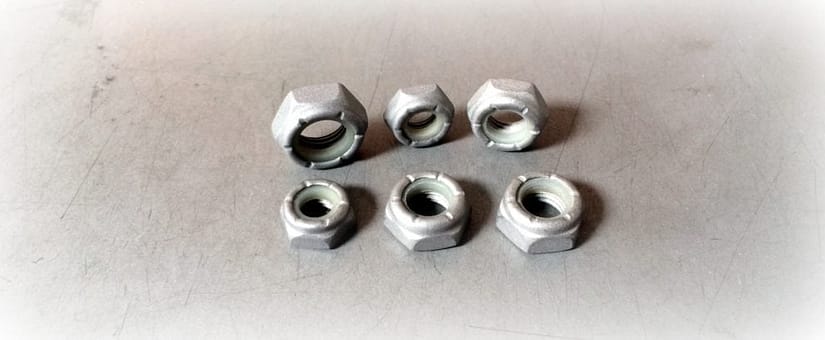

These think pattern custom nylon insert lock nuts comprise three different sizes we sell to our long time customer on an annual blanket purchase order basis – the sizes covered are 1/4-28, 3/8-24, and 5/16-24. The parts are made overseas with our long time trusted factory source and are put through a glass bead, aluminum […]
Read More
- Posted by alex@engineeredsource.com
- On October 13, 2016
- 0 Comments

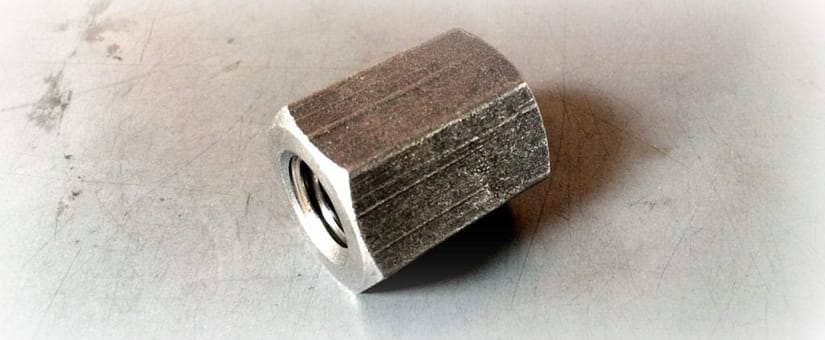

These are custom grade 5 coupling nuts that are used together with a special mold bolt and square washer pictured below. They measure 3/4-10 by 1-1/2 inches in length, and can be supplied with plain and light oil finish or hot dip galvanized finish as pictured here. Together with the other two components, this coupling […]
Read More
