Project Description

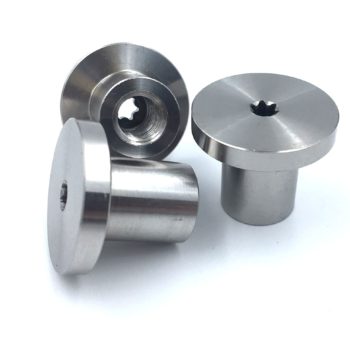

These custom flange nuts were manufactured domestically using 17-4PH stainless steel material with 10-24 internal thread. Overall height of the flange nut was .19″ +/-.01″ and the diameter of the flange was a critical dimension at .330″ +.000/-.015″. The hex was set to .250″ +.000/-.005″ across the flats. Our internal part number is NRNS-10-117-4 and typical lead time for full production is 6-8 weeks from order confirmation.

Large quantities of these custom made stainless steel flange nuts would be best supplied on a 12 month blanket purchase order basis. The Blanket Order concept allows the customer to access the large quantity cost savings without paying upfront for the entire large quantity order. Instead we take on the burden of carrying the bulk inventory and only release the parts as needed, or often on a pre-scheduled basis provided by the customer.
