- Posted by alex@engineeredsource.com
- On August 23, 2021
- 0 Comments

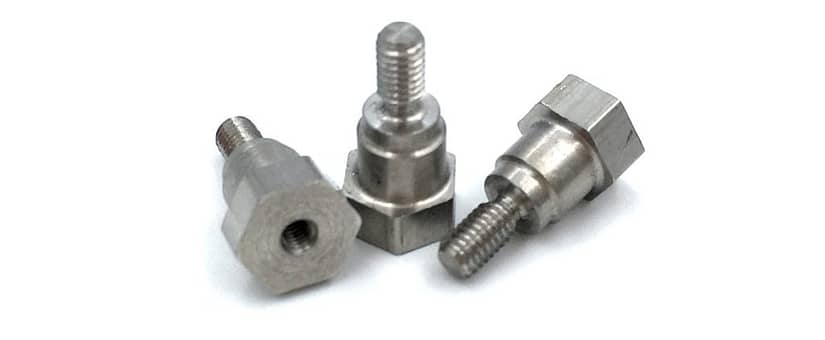

We had these custom hex shoulder standoffs manufactured in 316 stainless steel for a physical and accelerator lab in two thread sizes – M3 and M4 thread sizes with 6g thread fit. The width across the flats on the hex measured 6.8-7MM and the main shoulder diameter measured 5.6MM +/-.05 and the step down shoulder […]
Read More
- Posted by alex@engineeredsource.com
- On August 18, 2021
- 0 Comments

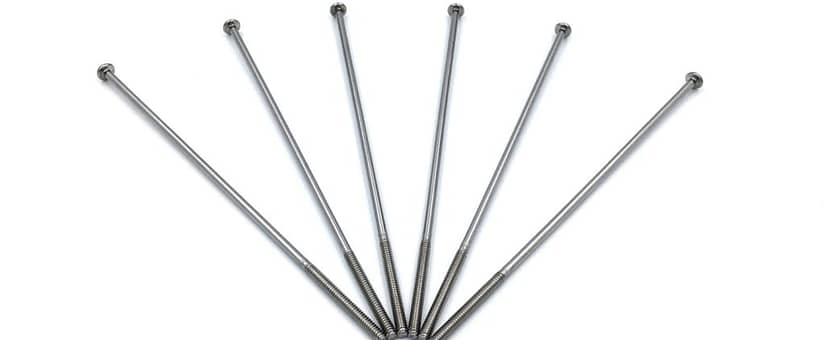

Almost 20,000 pieces of these custom long machine screws were manufactured for our injection molding customer, made using 302 stainless steel material with plain finish. 4/40 thread was incorporated with 1″ of usable thread minimum on each screw. Overall length was set to 4.625″-4.725″ and the head was a standard philips pan head for a […]
Read More
- Posted by alex@engineeredsource.com
- On August 17, 2021
- 0 Comments

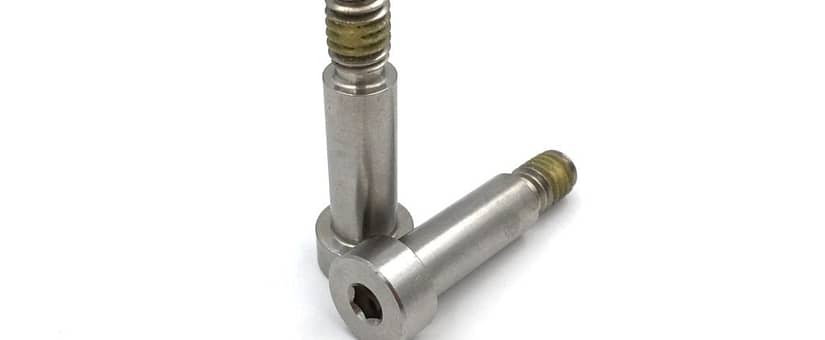

We had approximately 1,300 pieces of these custom 316 stainless steel shoulder bolts produced domestically in the USA with thread locking patch. The shoulder measured 3/8″ by 1″ in length and the thread was rolled to 5/16-18. Full certs were provided with the parts and the lead time was approximately 8-10 weeks from order confirmation.
Read More
- Posted by alex@engineeredsource.com
- On July 30, 2021
- 0 Comments
We had 500 pieces of these large custom locating dowel pins manufactured domestically in alloy steel material, with heat treat to achieve 47-58 HRC core hardness. The original drawings were fairly aged and it was difficult to figure out how the transition point between the round and hex portions of the pins should be formed. […]
Read More
- Posted by alex@engineeredsource.com
- On July 29, 2021
- 0 Comments

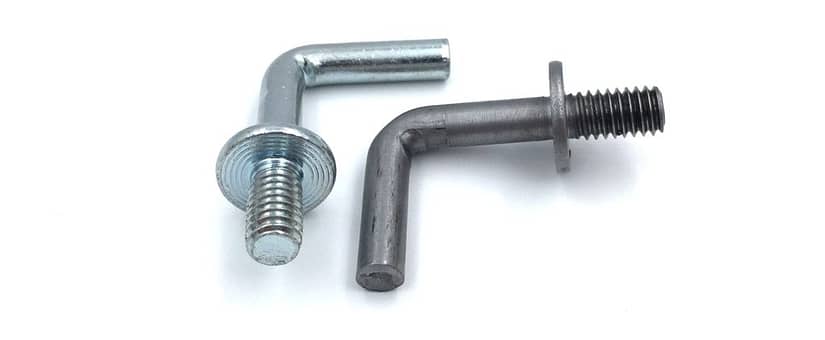

These custom stamped bent L-shaped bolts were manufactured with a cold formed/stamped stop shoulder critical to the assembly application. 5/16-18 thread was incorporated underneath the shoulder/flange feature, at approximately 14.42mm in length. The unthreaded length measures 31mm on the outside and the flange/shoulder diameter is 17.5mm. Zinc + clear finish was applied to complete the […]
Read More
- Posted by alex@engineeredsource.com
- On July 29, 2021
- 0 Comments
These custom knurled nylon insert lock nuts were manufactured using SAE J995 class 8 material with zinc clear finish. 3/8-24 internal thread was incorporated with a 45 degree chamfer and a .551-.562 across the flats hex was formed over the nylon insert. Overall length measured at .519 +/-.03″ and the knurled portion measured approximately .34″ […]
Read More
- Posted by alex@engineeredsource.com
- On July 29, 2021
- 0 Comments
We had approximately 10,000 pieces of these custom large stainless steel pins manufactured for a customer installation in Italy. 303 stainless steel was used for production and the pins measured .249″ in diameter by 5″ in overall length. A slight 45 degree chamfer was added on both sides to remove any sharp edges. This was […]
Read More
- Posted by alex@engineeredsource.com
- On July 20, 2021
- 0 Comments
These custom 8740 chrome moly slotted bolts were manufactured domestically in the USA for our aerospace customer, intended to offer min 160,000 psi tensile strength. 10-32 UNF 3A thread was incorporated and overall screw length underneath the head is .746 +.015/-.015″. A channel was formed at the bottom of the head to allow for an […]
Read More
- Posted by alex@engineeredsource.com
- On July 16, 2021
- 0 Comments

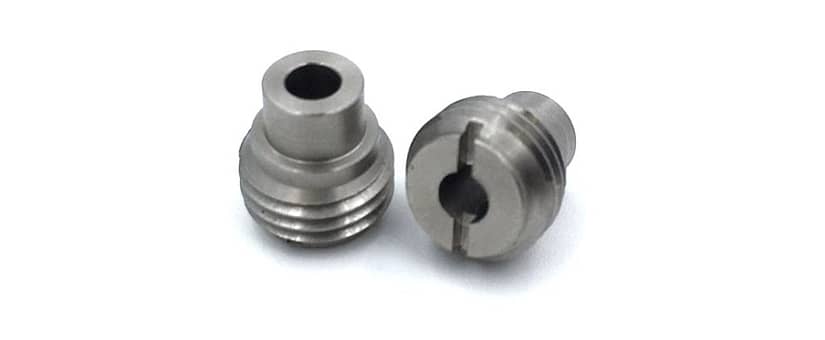

These custom stainless vented pins were manufactured domestically using 303 stainless steel material and measure .393″ +/-.01 in overall length with 3/8-24 partial thread. They are fully vented with an ID of .124 +.002/-.000. A slotted drive (.03″ across) was incorporated on the threaded side and the parts were completed with a passivated finish per […]
Read More
- Posted by alex@engineeredsource.com
- On July 9, 2021
- 0 Comments
We provided our aerospace customer two variations of these custom 8740 steel phil flat screws, made using 8740 material per MIL-S-6049 with cadmium plating per QQ-P-416 Type I Class 2. NSN-53505-01-093-0290 measured 10-32 X .713″ while NSN-5305-01-093-2450 measured 10-32 X .837″. Both parts were manufactured domestically with full certs.
Read More
