Project Description

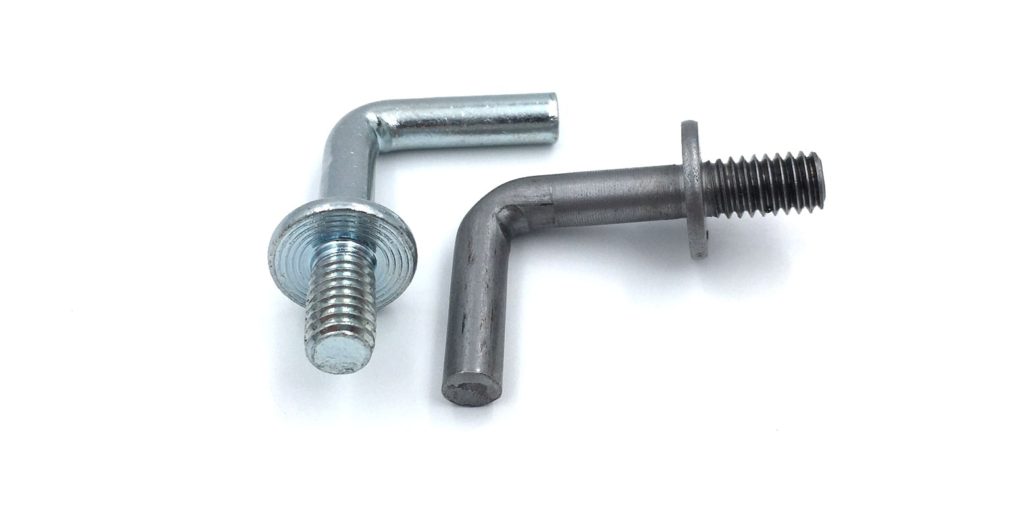

These custom stamped bent L-shaped bolts were manufactured with a cold formed/stamped stop shoulder critical to the assembly application.  5/16-18 thread was incorporated underneath the shoulder/flange feature, at approximately 14.42mm in length.  The unthreaded length measures 31mm on the outside and the flange/shoulder diameter is 17.5mm.  Zinc + clear finish was applied to complete the parts after heat treat.  Full certs were available with the parts.

Project Details
