Project Description

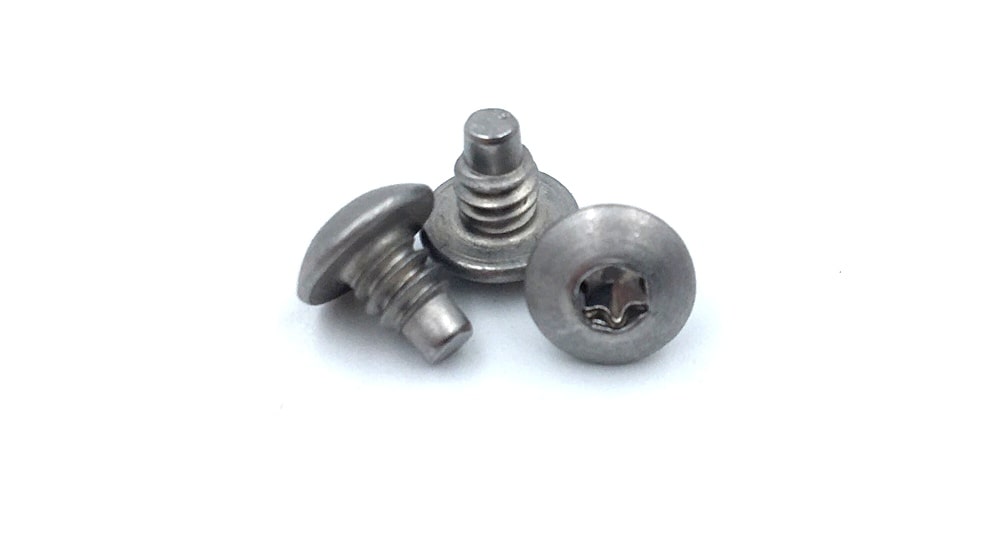

These custom low profile torx machine screws were manufactured domestically using 18-8 stainless steel material, at production volume of approximately 5,500 pieces. T10 size 6 lobe drive was incorporated and the head diameter at .262″ +/-.01″ and head height at .263″ +/-.01. 6-32 thread was selected for the .185″ of thread, followed by a lead point measuring .090″ +.000/-.002 in diameter and .050″ +.020/-.000 in length. Parts were passivated per MIL QQ-P-35 Type II to complete the production process.

Large quantities of these custom made low profile screws would be best supplied on a 12 month blanket purchase order basis. The Blanket Order concept allows the customer to access the large quantity cost savings without paying upfront for the entire large quantity order. Instead we take on the burden of carrying the bulk inventory and only release the parts as needed, or often on a pre-scheduled basis provided by the customer.

Project Details
