- Posted by alex@engineeredsource.com
- On September 20, 2021
- 0 Comments

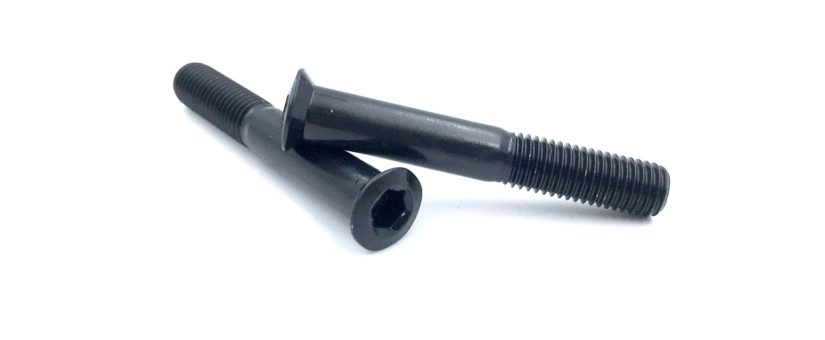

We get these custom cold headed screws with black nitride finish manufactured 100% domestically for our gun manufacturing customer using 302 stainless steel material. 1/4-28 partial thread is rolled to .75″ in length and overall length is set to 1.695″. Black nitride finish was added at 980 to 1050 degrees and effective case thickness of […]
Read More
- Posted by alex@engineeredsource.com
- On September 13, 2021
- 0 Comments
We had these custom automotive 12 point bolts manufactured for our aftermarket automotive customer in batches of 20,000-40,000 pieces using 4140 alloy steel material to Grade 8 specifications. The bolts were finished with either Geomet or Zinc Aluminum and were combined with a Nitrile 70A o-ring to provide a “sealing” effect. 7/16-20 thread was rolled […]
Read More
- Posted by alex@engineeredsource.com
- On August 23, 2021
- 0 Comments

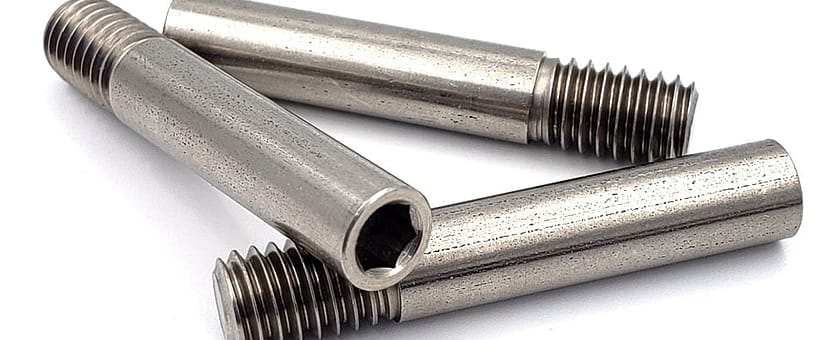

We had 5,000 pieces of these custom countersunk double end studs manufactured for our customer that specializes in frozen drink equipment production. 304 stainless steel material was used and the thread was cut on both sides. Overall length was 41.66MM +/- 0.5 and both threaded sides incorporated 5/16-18 2A thread, at 10.16MM and 15.24MM in […]
Read More
- Posted by alex@engineeredsource.com
- On August 17, 2021
- 0 Comments
We had approximately 1,300 pieces of these custom 316 stainless steel shoulder bolts produced domestically in the USA with thread locking patch. The shoulder measured 3/8″ by 1″ in length and the thread was rolled to 5/16-18. Full certs were provided with the parts and the lead time was approximately 8-10 weeks from order confirmation.
Read More
- Posted by alex@engineeredsource.com
- On July 27, 2021
- 0 Comments
These custom partial thread socket shoulder bolts were manufactured for our automotive customer using 18-8 stainless steel material and cold formed 3/16 hex socket drive. Approximately .50″ of 5/16-18 thread was incorporated and the shoulder measured .312″ in diameter at 1.25″ in length. The threaded section was turned down prior to thread roll operation.
Read More
- Posted by alex@engineeredsource.com
- On July 8, 2021
- 0 Comments
These custom extended dog point set screws were manufactured using 4140 alloy steel material with zinc clear finish. 6-32 thread was rolled at .150″ in length and a 1/16″ hex socket drive was incorporated. Overall length measured .45″ and the dog point diameter was set to .097 +/- .001″. Production lead time was 12 weeks […]
Read More
- Posted by alex@engineeredsource.com
- On April 30, 2021
- 0 Comments
These custom invar 36 socket head screws were manufactured domestically for University of Rochester with a broached socket drive for faster turnaround. Invar 36 material is typically used in applications where dimensional changes must be limited or minimized in extreme temperature variations – thermal expansion is at a fraction of the typical carbon steels. We […]
Read More
- Posted by alex@engineeredsource.com
- On April 8, 2021
- 0 Comments
These custom DFARS 316 stainless steel screws were manufactured domestically with plain finish for our marine unmanned vehicle manufacturing customer. The two sizes shown here are 8-32 X 7/18 and 10-32 X 5/8, both fully threaded. The hex socket drive is broached on both sizes for fast turnaround – cold headed version provides better cost […]
Read More
- Posted by alex@engineeredsource.com
- On April 7, 2021
- 0 Comments
These custom domestic alloy steel socket head screws were manufactured domestically for our customer that needed DFARS compliant 10-32 X 1-3/8 parts. 4140 alloy steel material was used, heat treated to Rc 37-44 and finished with black oxide. All dimensions were per IFI standard and full certs were included with the parts.
Read More
- Posted by alex@engineeredsource.com
- On March 8, 2021
- 0 Comments

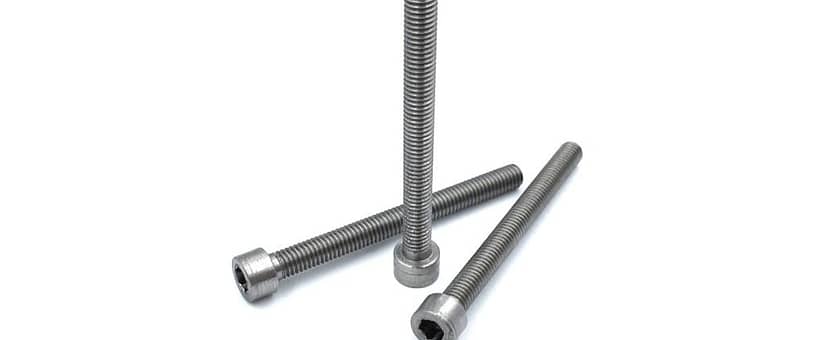

These custom long 316 stainless steel screws were manufactured domestically using a broached socket drive and cut threads to allow for the fast production turnaround required on the project. The 316 stainless steel raw material was required to be DFARS compliant. 8-32 thread was incorporated at a length of approximately 1-1/8″ and overall length underneath […]
Read More
