- Posted by alex@engineeredsource.com
- On January 17, 2023
- 0 Comments
We had these custom 440C precision machined shaft bushings manufactured using DFARS compliant AMS 5830 material for our aerospace customer, with a passivated finish to ASTM A967. The inside diameter on the bushings was set to .6255 +/- .0005″ and outside diameter to .7528 +/-.0005″, with a width of .185 +/-.002″. Full certs were provided […]
Read More
- Posted by alex@engineeredsource.com
- On September 16, 2022
- 0 Comments
These custom 420 stainless steel precision machined components were manufactured for our aerospace customer, with initial samples produced using 18-8 stainless steel for functional testing prior to full production. Overall length was .804 +/- .005″ and the flange outer diameter was set to .396″ +/-.005″. Four drilled holes were incorporated at a diameter of .120″ […]
Read More
- Posted by alex@engineeredsource.com
- On September 16, 2022
- 0 Comments
These custom precision machined A286 stainless steel sleeve components are manufactured domestically for an aerospace application. Overall length is 1.5″ and the sleeve incorporates 1/2-20 2A male thread and 5/16-24 2B female thread at a depth of .512″. A number of precision shoulder steps are designed into the exterior and interior of the components. FAIR […]
Read More
- Posted by alex@engineeredsource.com
- On April 12, 2021
- 0 Comments
We had 8 different configurations of these custom silicon bronze sleeve bearings manufactured domestically for our defense customer. The inside diameter was set to .116″ for all 8 different variations and the length was also consistently set to .125″. The outside diameter however varied from .180″ to .210″. Production was done domestically in the USA […]
Read More
- Posted by alex@engineeredsource.com
- On August 7, 2019
- 0 Comments

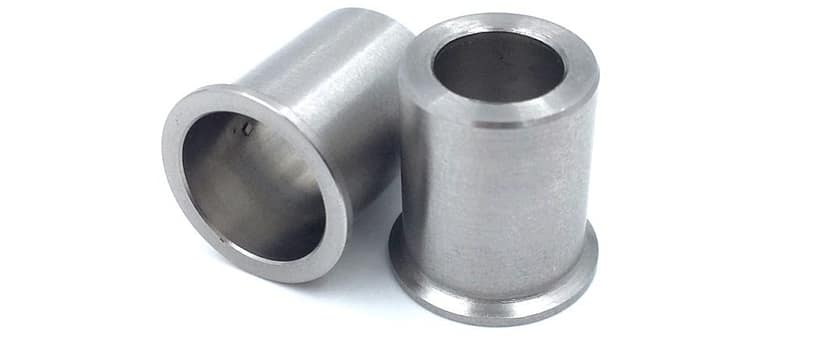

These custom precision flange bushings were produced domestically in the USA using 18-8 stainless steel material. The overall length measured .630″ +/-.01″ and the part incorporated both an external flange and an external flange per customer supplied drawings. The OD on the barrel portion is .5″ and .585″ at the external flange, both with the […]
Read More
- Posted by alex@engineeredsource.com
- On July 31, 2018
- 0 Comments

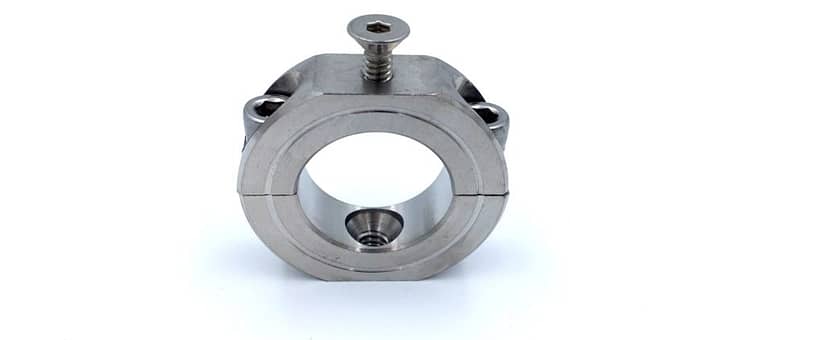

We supply a large number of different custom and standard off the shelf shaft collars to our long time customer base, primarily on revolving 12-month blanket purchase order basis. These particular 1″ custom stainless steel shaft collars however we supplied to our customer at just 4 pieces. Custom made to his specifications in the USA, […]
Read More
- Posted by alex@engineeredsource.com
- On March 15, 2018
- 0 Comments

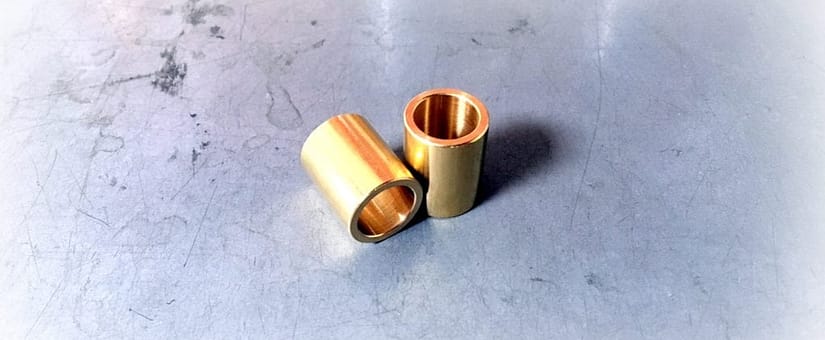

These are custom brass bushings we supply our automotive customer on a recurring blanket purchase order basis, with monthly releases based on their usage. They are manufactured overseas in Taiwan and maintain +/-.009 tolerance on the outside and inside diameter, as well as the length. The inside diameter is set at 0.500 inches, the outside […]
Read More
- Posted by alex@engineeredsource.com
- On April 16, 2016
- 0 Comments

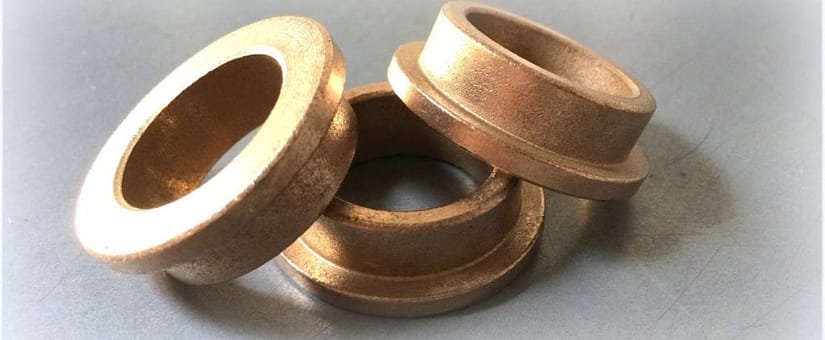

These SAE 841 custom flanged bronze bearings are made to print as a matching component to the 7/8 X .540 X 3/4-16 socket shoulder bolt. It’s inside diameter is 7/8″ and outside diameter measures 1-1/8″. The inside surface area is intended to join with the shoulder of the bolt. Manufactured in the United States, these custom […]
Read More
- Posted by alex@engineeredsource.com
- On April 16, 2016
- 0 Comments
These custom sleeve bearings were manufactured using 304 stainless steel, passivated, and run through a water immersion test for 24 hours. Made in USA, this custom stainless steel sleeve is DFAR compliant and original order quantity was for just 50 pieces. Lead times on the smaller quantities can be very fast, often at one week or […]
Read More
- Posted by alex@engineeredsource.com
- On April 16, 2016
- 0 Comments

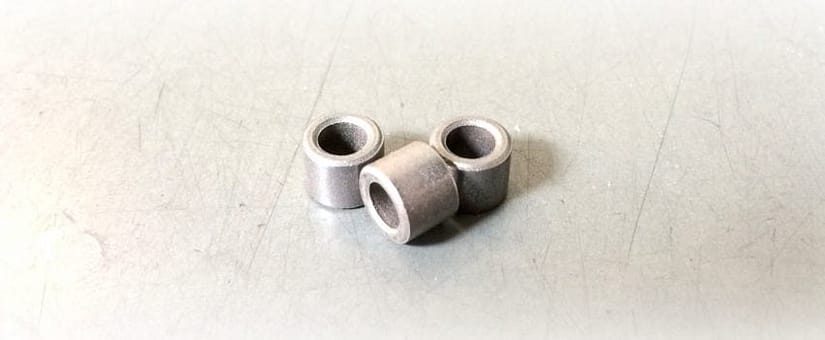

We provide our customer base a number of different custom bearings and sleeve type bearings like this SAE 863 part. These custom SAE 863 bronze sleeve bearings were supplied at a quantity of just over 5,000 pieces and the lead time was approximately 6 weeks. They were manufactured domestically in the United States. SAE 863 is […]
Read More
