- Posted by alex@engineeredsource.com
- On November 22, 2017
- 0 Comments

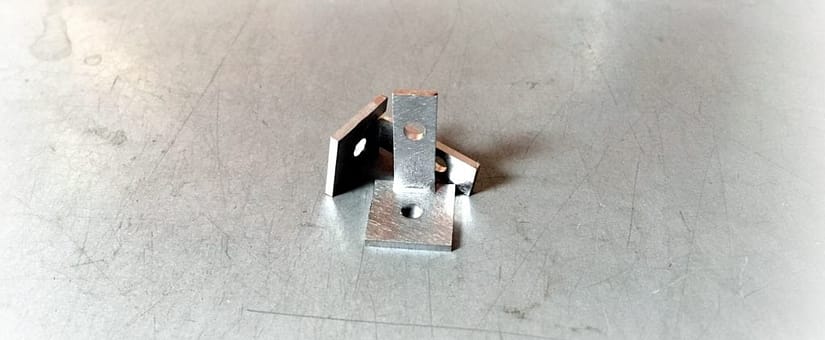

These are custom L brackets we provided our long time OEM customer. We initially had 100 pieces produced for testing and engineering inspection prior to a full commitment for 20,000 estimated annual usage. Plain low carbon steel material was used and the initial sample lot of 100 pcs was done within 1 week of print […]
Read More
- Posted by alex@engineeredsource.com
- On October 17, 2017
- 0 Comments
This is an example of blue coated aerospace hardware we supply, with a 1/4 diameter shoulder screw in alloy steel coated with Alumazite KL-55 blue finish. The blue coating was intended to allow an robotic color coded system to recognize the screw and yet maintain its integrity in environments up to 600 degrees F. The […]
Read More
- Posted by alex@engineeredsource.com
- On August 31, 2017
- 0 Comments

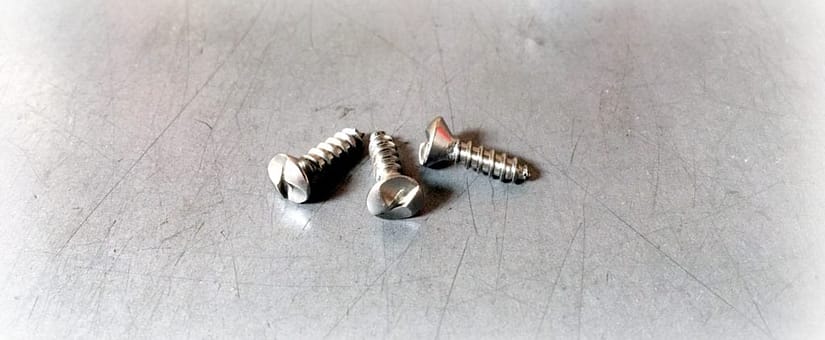

These are custom stainless tamper proof sheet metal screws measuring 6-18 X 1/2 inch in length. A tamper resistant one way oval head is incorporated with type A sheet metal screw thread. We have these parts manufactured domestically at 30,000 to 50,000 pieces and release them to our customer as needed throughout the year. 18-8 […]
Read More
- Posted by alex@engineeredsource.com
- On August 4, 2017
- 0 Comments
These are custom machined double end studs used for aerospace applications and in our case specifically for helicopter repair. 17-4 material is used and the 10-32 UNJF-3A thread is cut after the drilled hole process and machined operations are completed. A 3/32 hex recess with a .225″ deep cavity is created on one side using […]
Read More
- Posted by alex@engineeredsource.com
- On June 6, 2017
- 0 Comments

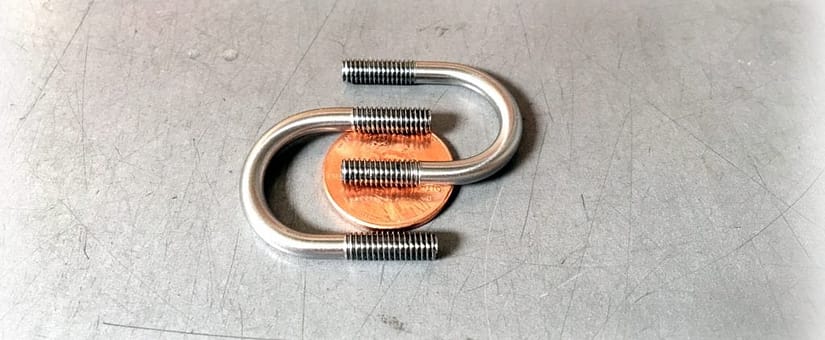

These are custom miniature metric u bolts we supplied to our customer at just five pieces for testing purposes before a larger production volume order is placed. The inside width was maintained at 16MM and the straight portion of each leg was to be set at 15.34MM. On the metric u bolts with similar inside […]
Read More
- Posted by alex@engineeredsource.com
- On April 19, 2017
- 0 Comments

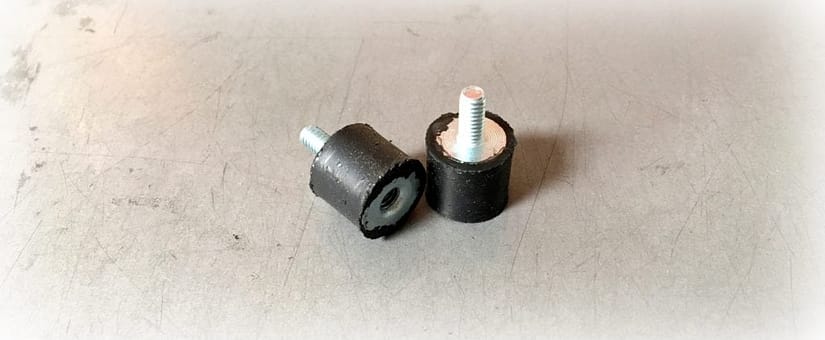

These are 10-24 thread version of custom rubber vibration isolation mounts we supply our customer base. This specific part we supply on a revolving blanket purchase order basis. The vibration isolation mounts are manufactured domestically in the USA and the initial lead time for first shipment is typically at 45-60 days from order confirmation. Large […]
Read More
- Posted by alex@engineeredsource.com
- On April 13, 2017
- 0 Comments
These are custom knurled shoulder machine screws manufactured domestically in the USA in grade 5.1 steel material with zinc and yellow finish. Production was run at a relatively small quantity of 4,000 pieces, which was split into two shipments approximately 4 months apart to our OEM customer. Material certs and dimensional test reports were provided […]
Read More
- Posted by alex@engineeredsource.com
- On February 20, 2017
- 0 Comments
These are custom stainless button head cap screws with partial 8-32 thread made domestically in the United States to the customer’s print. 303 stainless steel material was used and the unthreaded shank of the custom screw was made to a diameter of .125″. The 8-32 threaded portion was maintained to a max .225 inches in […]
Read More
- Posted by alex@engineeredsource.com
- On February 17, 2017
- 0 Comments
These are custom socket head screws with a low profile head measuring .270 X .078 inches, made in the USA using 303 stainless steel material. The thread incorporated is 8-32 at 7/8″ in length, with the remainder of the length as an un-threaded shoulder. The point on these custom socket bolts has a machined socket […]
Read More
- Posted by alex@engineeredsource.com
- On February 16, 2017
- 0 Comments
These are custom machined flat head screws made domestically in the USA using 303 stainless steel material. The unique application required the custom screw to have a stop shoulder machined and a 30 degree angle under the head. 10-24 thread was used for the threaded area and the head diameter was maintained at .312″ +/-.005. […]
Read More
