These custom alloy steel metric cone point set screws were manufactured in alloy steel material with M12 – 1.75 rolled thread and 60MM length underneath the cold formed square head. The square head measured 13MM X 13MM X 12MM in height. The cone point incorporated a 9MM diameter shoulder to assist in assembly on the […]
Read More
- Posted by alex@engineeredsource.com
- On April 29, 2024
- 0 Comments
These custom stainless steel shoulder bolts were manufactured in 18-8 stainless steel material for our drone manufacturing customer. M3 X 0.5MM thread was rolled with a thread relief machined below the 4MM X 5MM shoulder. A 2MM hex drive was broached at the head and a precision machined profile was incorporated on the head to […]
Read More
- Posted by alex@engineeredsource.com
- On January 11, 2024
- 0 Comments
These custom metric stainless steel standoffs were manufactured using 303 stainless steel material with M3 X 0.5 tapped to a depth of 8MM on one side and unthreaded drilled hole on the other side at a diameter of 4.2MM and a depth of 10MM. The flat machined sections were set to 7MM across the flats […]
Read More
- Posted by alex@engineeredsource.com
- On November 6, 2023
- 0 Comments
These custom metric hex key double thread studs were manufactured domestically for our automotive customer using alloy steel material meeting 220,000 psi clamp load minimum. M12 thread was rolled on both sides, with fine pitch on the longer side and coarse on the other. 1/4″ hex drive was formed on one side extending .25″ from […]
Read More
- Posted by alex@engineeredsource.com
- On September 26, 2023
- 0 Comments
These custom precision machined spacers were manufactured for our electronics customer using 360 Brass Alloy material per QQ-B-626. The small diameter extension pin had the tightest tolerance measuring .038″ +.000/-.002″ while the main body diameter was set to .125″ +/- .002″. Overall length of the spacer is set to .234″. Full certs were provided with […]
Read More
- Posted by alex@engineeredsource.com
- On September 21, 2023
- 0 Comments
These custom precision machined electronics parts were manufactured for our customer using 360 Brass Alloy material. All production was done domestically in the USA with full certs. The larger OD was set to .280″ +/-.005″ and the smaller OD was set to .250″ with the same tolerance. Overall thickness was set to .050″.
Read More
- Posted by alex@engineeredsource.com
- On August 31, 2023
- 0 Comments
These custom tapered shoulder socket head bolts were manufactured using 4140 alloy steel material with 28-32 HRC hardness and zinc clear finish. The shoulder diameter tapers form 0.78″ down to 0.75″ and the head diameter was set to 1.00 +/-.015″. Underneath the shoulder approximately .55″ of 3/8-24 2A thread was rolled with thread relief allowance […]
Read More
- Posted by alex@engineeredsource.com
- On July 10, 2023
- 0 Comments

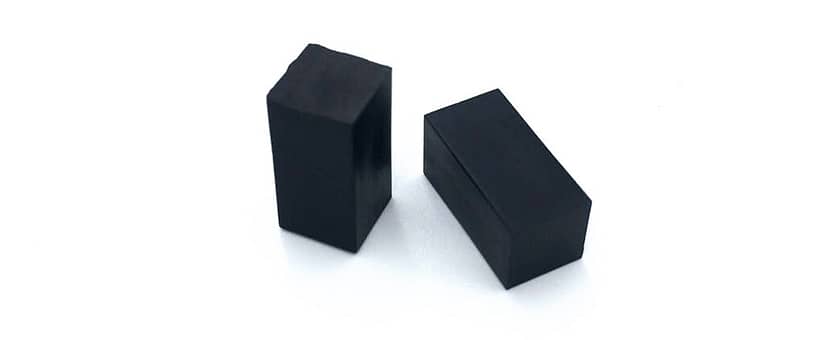

These custom black injection molded parts were manufactured using recycled ABS material in black for our specialty OEM customer. They were manually cutting sections of long rods on the production floor prior to our supply of the custom sized part to save time and overall cost for the application. Dimensionally the parts measured .25″ at […]
Read More
- Posted by alex@engineeredsource.com
- On June 22, 2023
- 0 Comments
These custom grade 8 countersunk hex flange bolts were manufactured for our automotive after market manufacturing customer with zinc yellow finish. Partial 1/2-13 thread was rolled and the length under the hex (inclusive of the countersunk portion) was set to 2-3/4″. Full certs were made available with the parts.
Read More
- Posted by alex@engineeredsource.com
- On June 21, 2023
- 0 Comments
We manufactured these custom left hand thread hex head bolts for our customer to grade 5 requirements in plain thermal black oxide finish. They measured LH 3/4-10 x 2″ in length with the hex head measuring 1.100-1.125″ across the flats. Head height was set to .483-.455″. Full certs were made available with the parts.
