- Posted by alex@engineeredsource.com
- On March 21, 2017
- 0 Comments
This is a small batch of custom stainless steel dowel pins manufactured domestically in the USA at just 36 pieces. 303 stainless steel was used and the custom dowel pins measure .1160 at the diameter by .625 inches in length. The diameter was the most critical dimension with a tolerance of +/-.0001″. Both sides were […]
Read More
- Posted by alex@engineeredsource.com
- On March 5, 2017
- 0 Comments

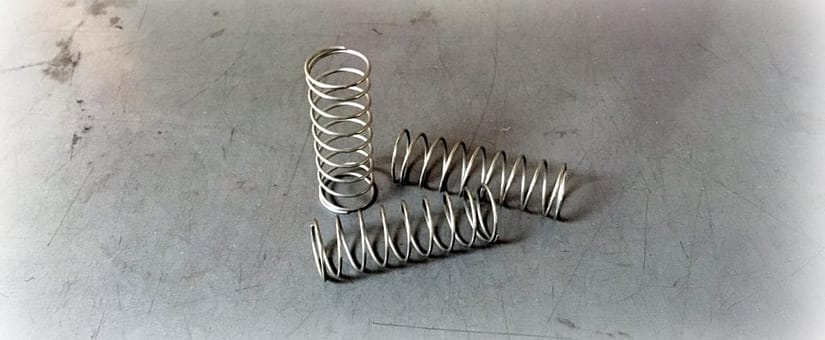

These are one of the many custom coil compression springs we supply our customer base, made in the USA using music wire with revolving 12 month blanket purchase orders. The outside diameter measures 0.471 inches, the free length is at 1.391 inches, and the custom springs maintain 9.4 coils. Material certs and certificate of conformance […]
Read More
- Posted by alex@engineeredsource.com
- On March 3, 2017
- 0 Comments
These are custom stainless aerospace pins we supply on a production to order basis. Only one side is chamfered to the customer’s requirements and the custom parts are run through passivation prior to shipment. They measure .310 at the diameter and 3″ +/.02 in length. To the customer’s specifications, these custom pins are manufactured in […]
Read More
- Posted by alex@engineeredsource.com
- On November 16, 2016
- 0 Comments

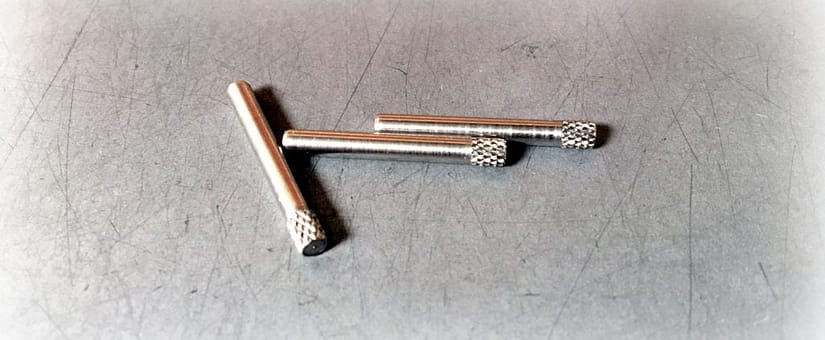

Similar to the other custom stainless knurled pins we supply, this is a stainless steel pin manufactured in the USA with a single diamond knurled side. Made the same way as the double sided version, the knurling is done aggressively to push the material and expand the outside diameter beyond that of the smooth shoulder […]
Read More
- Posted by alex@engineeredsource.com
- On November 15, 2016
- 0 Comments
These are custom diamond knurled stainless steel pins made to a customer’s print at a quantity of just over 500 pieces. They measure approximately .800″ in length at a diameter of .118″. Of-course the most interesting requirement is the diamond knurling of .150″ at each side that is intended to bite into the plastic setting. […]
Read More
- Posted by alex@engineeredsource.com
- On October 13, 2016
- 0 Comments

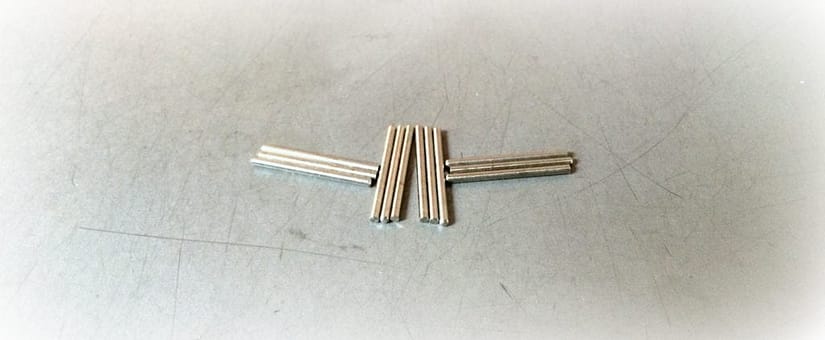

We supply a number of versions of these custom rolled pins made using Inconel alloy C-276 material in the USA. The part is stocked and released as needed to our long time customer. The inconel materal is hot rolled, pickled, and annealed – the final rolled pins shown here measure 1/16 X .850″. We supply these […]
Read More
- Posted by alex@engineeredsource.com
- On June 17, 2016
- 0 Comments
We supply our vast customer base a number of different custom made compression springs and custom extension springs, typically on a blanket as-released purchase order basis. This special spring part is an extension spring made using pre plated .022 galvanized music wire material. It is usually supplied to our customer at 5,000 piece releases from […]
Read More
- Posted by alex@engineeredsource.com
- On May 20, 2016
- 0 Comments

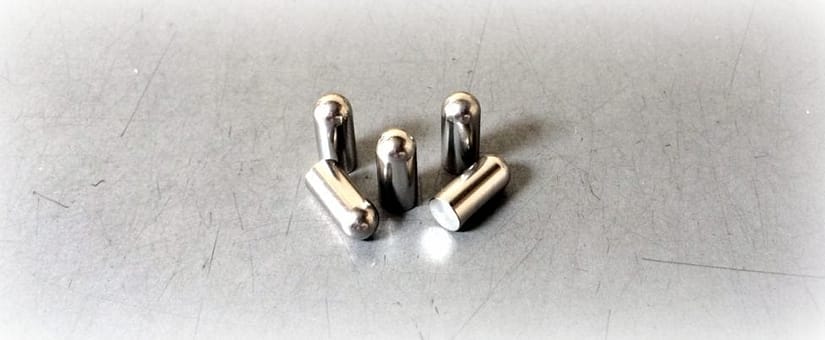

These are custom dowel pins made for our aerospace customer using 420 stainless steel material at just 100 pieces. After production the dowel pins were separately passivated using a NADCAP certified facility using a process of passivation with descaling and a 24 hour water immersion test that is typically recommended for 400 series stainless steel materials. […]
Read More
- Posted by alex@engineeredsource.com
- On April 29, 2016
- 0 Comments

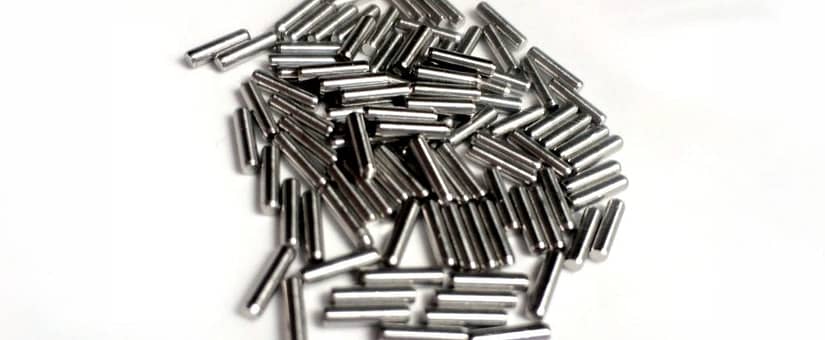

We supply a wide range of custom dowel pins in materials varying from PVDF to 303 stainless steel like these special to print 3/16 X 7/16 dowel pins. This pin has been provided to our customer using the same trusted domestic USA factory for over five years. We supply these custom dowel pins to our […]
Read More
- Posted by alex@engineeredsource.com
- On April 22, 2016
- 0 Comments

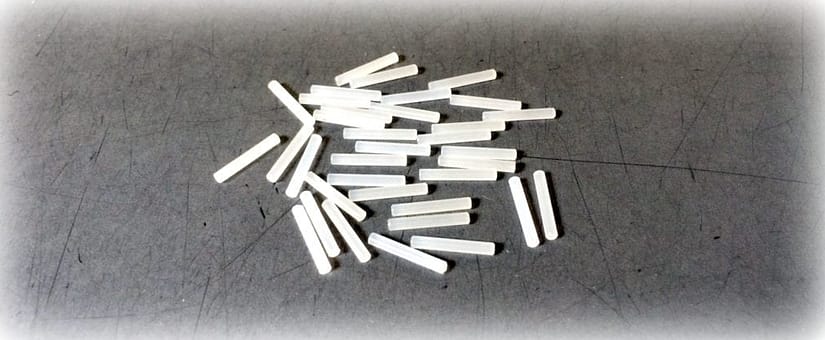

We supply a number of custom PVDF dowel pins like this 1/16 X .415 version to a customer that deals largely with water treatment applications. Together with a variety of other custom hardware parts we supply, this custom pin is provided on an annual blanket as-released purchase order basis. We try to maintain a minimum 6 […]
Read More
