- Posted by alex@engineeredsource.com
- On January 29, 2019
- 0 Comments

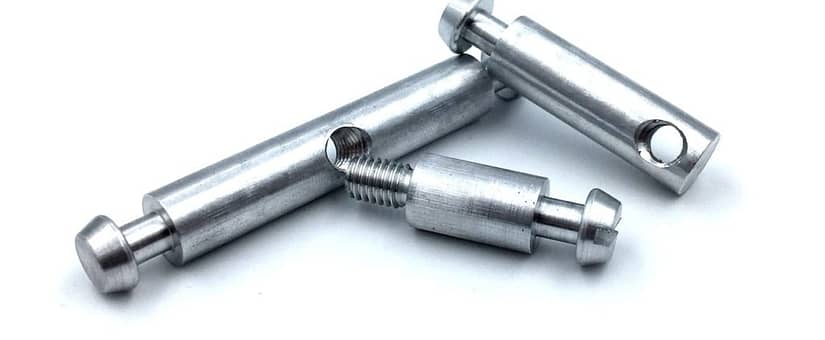

Our customer was in urgent need when she ordered this custom machined aluminum hardware and was having a hard time finding anyone to run a small quantity while maintaining a fast turnaround. We were able to come to the rescue with 24 total pieces and 16 days of lead time to get the parts completed. […]
Read More
- Posted by alex@engineeredsource.com
- On December 3, 2018
- 0 Comments
We supplied our customer a short run supply of these custom slotted pins with partial 6-32 thread. Just over 200 pieces were produced domestically using 304 stainless steel material. The 6-32 thread length was set at 0.18″ and all other dimensions were derived from the samples our customer provided us. These parts were relatively simple […]
Read More
- Posted by alex@engineeredsource.com
- On October 19, 2018
- 0 Comments

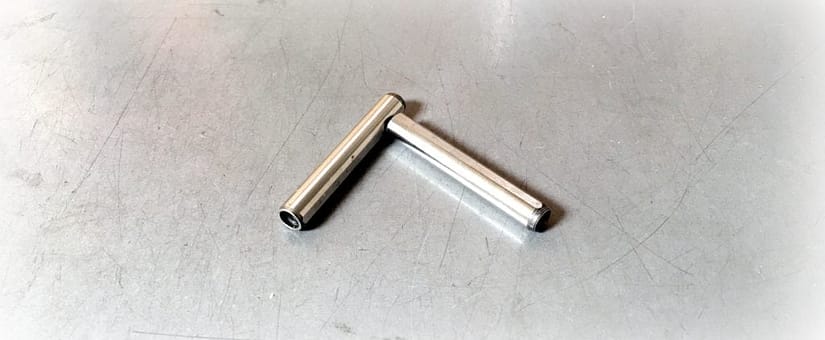

220 pieces of these custom stainless steel precision pins were produced domestically for our aerospace customer using 303 stainless steel material. Original specifications on the drawing called out for 303 stainless steel per AMS 5638 but we obtained a deviation approval to provide the part using a similar AMS 5640 V Type 1A spec material […]
Read More
- Posted by alex@engineeredsource.com
- On September 4, 2018
- 0 Comments
We had 100 pcs of this mating custom 316L machined hardware produced domestically with a lead time of approximately 4 weeks. These 100 pcs were to be used in testing prior to larger volume production. The rod pieces measures 90MM in overall length and the knurled nut measures 17MM in overall height. Getting the nut […]
Read More
- Posted by alex@engineeredsource.com
- On July 25, 2018
- 0 Comments

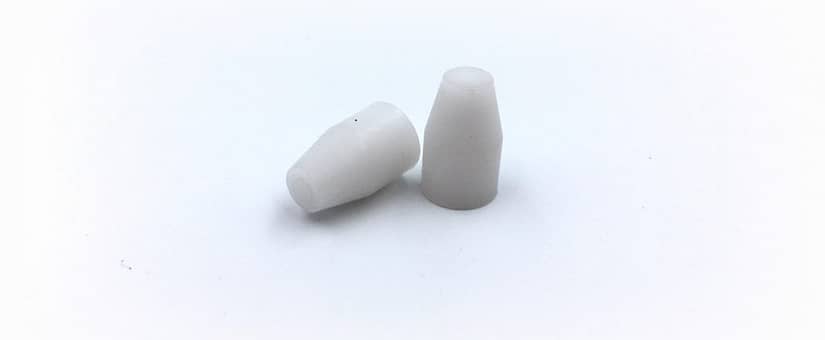

These are custom machined nylon pins we supply our industrial OEM customer. They are manufactured overseas with a lead time of approximately 120 days from approved drawing/print. Overall length is set at 1/2″ and the OD drops from 5/16″ on one side to 3/16″ on the other narrow side. The machined convex portion measures approximately […]
Read More
- Posted by alex@engineeredsource.com
- On October 30, 2017
- 0 Comments
These are custom stainless steel compression springs we supply our aerospace customer, in 302 stainless steel material to AMS 5640. The initial production run was relatively small at just 500 pieces, completed domestically with First Article Inspection Report (FAIR) and all applicable certifications. The freestanding length of the custom spring was set at 2.472 inches […]
Read More
- Posted by alex@engineeredsource.com
- On October 6, 2017
- 0 Comments

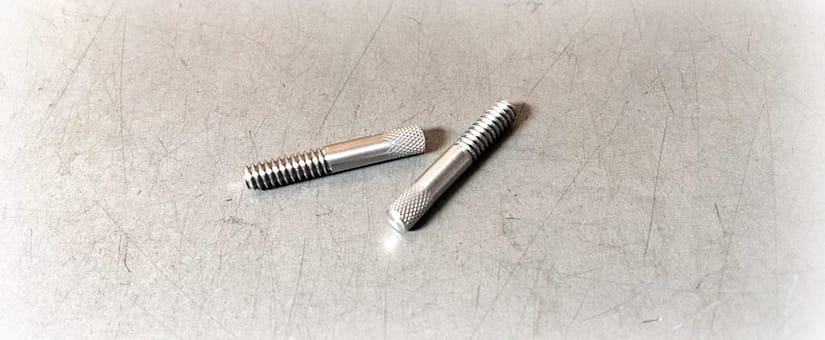

These are custom partially knurled pins made using plain low carbon steel material. One side is threaded at 6-32 with approximately .375 inches of thread while the other is diamond knurled at .20 inches max. Overall length is set at .855 inches. Production was done domestically at approximately 1,000 pieces. Material certs and a certificate […]
Read More
- Posted by alex@engineeredsource.com
- On June 23, 2017
- 0 Comments

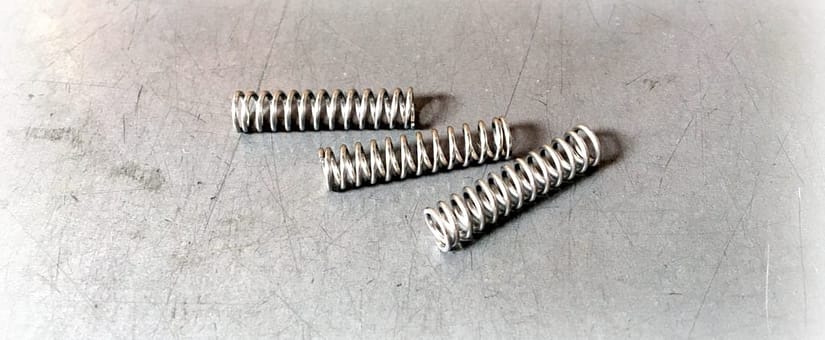

These are custom stainless steel compression springs we supply to our customer on an as-needed basis at approximately 20,000 pieces per order. The lead time is typically 4-6 weeks for full production. The stainless steel wire used is .032 in thickness and the total static length of the springs is 1 inch. Larger quantities of […]
Read More
- Posted by alex@engineeredsource.com
- On June 23, 2017
- 0 Comments
These are custom metric dowel pins we supply to our long time electronics OEM customer. They are made using alloy steel at M8 X 35MM and are tapped on one side each for M4 X 0.7M thread. The thread depth is set at 3MM and the other side is left untouched. These custom dowel pins […]
Read More
- Posted by alex@engineeredsource.com
- On June 13, 2017
- 0 Comments

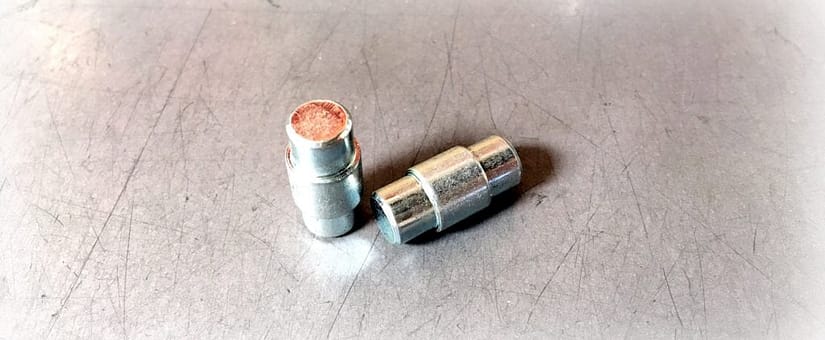

These are custom shoulder pins made using grade 2 steel material with zinc finish, manufactured overseas in Taiwan at approximately 100,000 pieces. We supply them to our long time OEM customer on revolving 12 month blanket purchase orders, delivering parts as they need them. The shoulder was maintained at 5/16 X 13/16″. Lead time for […]
Read More
