- Posted by alex@engineeredsource.com
- On September 26, 2022
- 0 Comments
These custom DFARS compliant NAS1352N4LE16S socket head bolts were manufactured domestically for our aerospace customer using A286 stainless steel material from France. They measured 1/4-20 X 1″ and were finished with AMS2411 Rev J silver flash plating and bake, as well as thread locking patch. Certification with mechanical testing performed per FF-S-86 specification were absolutely […]
Read More
- Posted by alex@engineeredsource.com
- On September 16, 2022
- 0 Comments
These custom 420 stainless steel precision machined components were manufactured for our aerospace customer, with initial samples produced using 18-8 stainless steel for functional testing prior to full production. Overall length was .804 +/- .005″ and the flange outer diameter was set to .396″ +/-.005″. Four drilled holes were incorporated at a diameter of .120″ […]
Read More
- Posted by alex@engineeredsource.com
- On September 16, 2022
- 0 Comments
These custom precision machined A286 stainless steel sleeve components are manufactured domestically for an aerospace application. Overall length is 1.5″ and the sleeve incorporates 1/2-20 2A male thread and 5/16-24 2B female thread at a depth of .512″. A number of precision shoulder steps are designed into the exterior and interior of the components. FAIR […]
Read More
- Posted by alex@engineeredsource.com
- On July 20, 2022
- 0 Comments
These custom precision drilled hex nuts were manufactured domestically in the USA using DFARS compliant 303 stainless steel material with NADCAP certified passivation per AMS QQ-P-35. Internal 5-40 2B thread fit was incorporated and two corners drilled at a .026 +/- .005″ diameter. Outside dimensions are 7/32″ across the flats and .244″ across corners. Full […]
Read More
- Posted by alex@engineeredsource.com
- On July 18, 2022
- 0 Comments
These custom 17-4 stainless steel shoulder screws were manufactured using DFARS compliant material for our defense customer, with MIL-DTL-13924D black oxide finish and heat treat to condition 1025. M3 X 0.50 thread was incorporated at a length of 4.06MM and the shoulder measured 3MM in diameter by 24.5MM. The head incorporated an aggressive diamond knurl […]
Read More
- Posted by alex@engineeredsource.com
- On February 18, 2022
- 0 Comments
We had these custom slotted pins manufactured domestically for our aerospace customer using DFARS compliant 303 stainless steel material. The pins measure .094″ in diameter and .35″ in overall length, with the slot at .020″ in width by .115″ in depth. The outside profile tapered from .094″ diameter max to .088″ at the narrow side. […]
Read More
- Posted by alex@engineeredsource.com
- On July 20, 2021
- 0 Comments

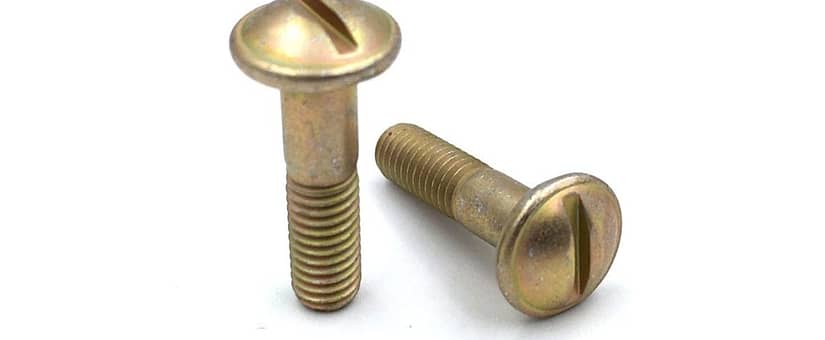

These custom 8740 chrome moly slotted bolts were manufactured domestically in the USA for our aerospace customer, intended to offer min 160,000 psi tensile strength. 10-32 UNF 3A thread was incorporated and overall screw length underneath the head is .746 +.015/-.015″. A channel was formed at the bottom of the head to allow for an […]
Read More
- Posted by alex@engineeredsource.com
- On July 9, 2021
- 0 Comments
We provided our aerospace customer two variations of these custom 8740 steel phil flat screws, made using 8740 material per MIL-S-6049 with cadmium plating per QQ-P-416 Type I Class 2. NSN-53505-01-093-0290 measured 10-32 X .713″ while NSN-5305-01-093-2450 measured 10-32 X .837″. Both parts were manufactured domestically with full certs.
Read More
- Posted by alex@engineeredsource.com
- On April 19, 2021
- 0 Comments
We had 1,000 pieces of these custom precision machined components manufactured domestically in the USA to serve as housing parts in a defense article production application. Aluminum alloy 2011 (Temper T3) material was used for the production and the parts were set for MIL-STD-171 compliant black dye. Dimensional requirement were fairly precise with tolerance at […]
Read More
- Posted by alex@engineeredsource.com
- On April 12, 2021
- 0 Comments
We had 8 different configurations of these custom silicon bronze sleeve bearings manufactured domestically for our defense customer. The inside diameter was set to .116″ for all 8 different variations and the length was also consistently set to .125″. The outside diameter however varied from .180″ to .210″. Production was done domestically in the USA […]
Read More
