Project Description

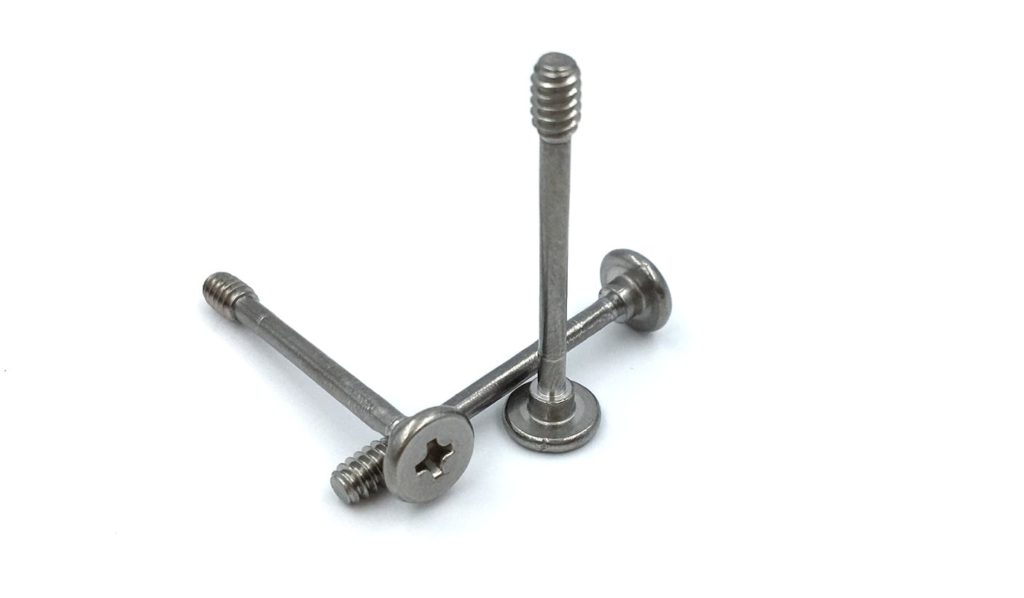

These custom stainless shoulder captive screws were manufactured using cold drawn stainless steel bar stock material with a cold headed head and drive.  6-32 thread was incorporated at 5mm +/- 0.5, with a lead in chamfer per print.  The head was made to 8mm in diameter and 1.5mm in height, with the step shoulder measuring 3.6 in diameter by 2mm in length.  The long captive shoulder was set to 2.3mm +0/-0.2 diameter.  Overall length is 31.5mm and the head featured a #2 phillips drive.
