Project Description

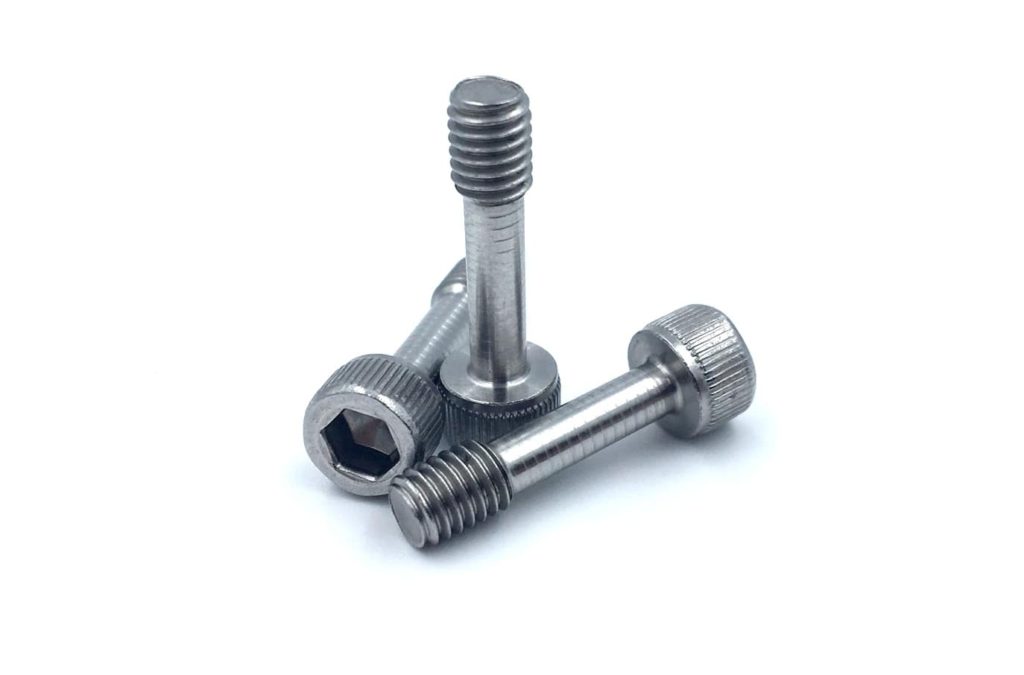

These custom stainless captive screws were made using standard off the shelf 10-32 X 3/4″ fully threaded socket cap screws in 18-8 stainless steel material. The .130-.150″ diameter shoulder was turned down leaving approximately 1/4″ of thread at the end of the screw. With a relatively loose tolerance on the shoulder diameter this job was a relative breeze and our internal part number is GM-1104-I.

Large quantities of these custom made captive screws would be best supplied on a 12 month blanket purchase order basis. The Blanket Order concept allows the customer to access the large quantity cost savings without paying upfront for the entire large quantity order. Instead we take on the burden of carrying the bulk inventory and only release the parts as needed, or often on a pre-scheduled basis provided by the customer.
