Project Description

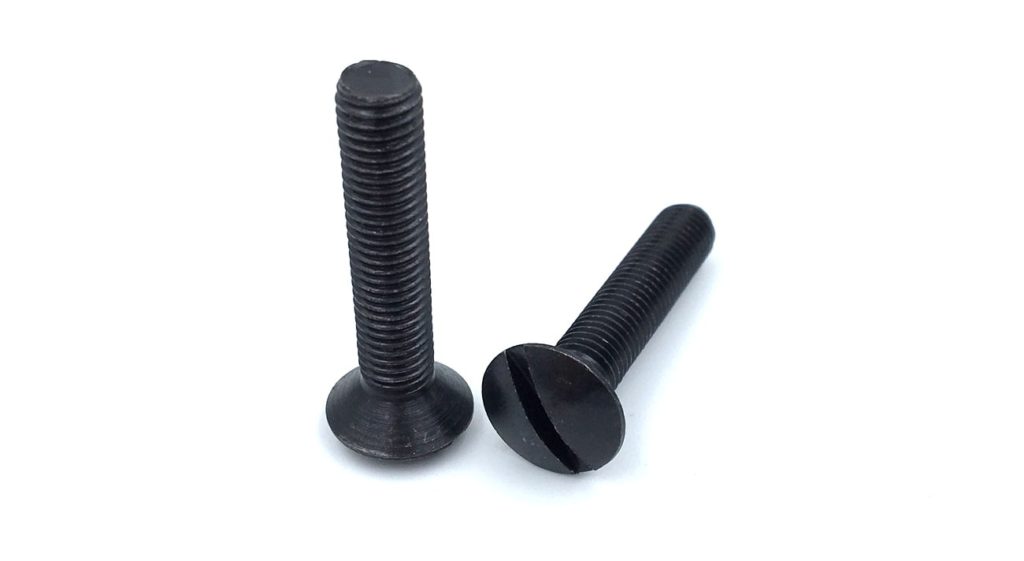

These custom slotted round metric screws were manufactured using a cold heading process mild steel material, finished with a black oxide treatment. 90-92 degree angle was incorporated underneath the head, which had an outside diameter of 13.37MM-13.80MM and overall height of 5.15MM max inclusive of the undercut portion. Full M7 X 1.0M thread was rolled to a 6G thread fit. The slotted drive was designed to 1.81MM-2.06MM width and depth of 2.5MM at minimum. Our internal part number for this custom metric machine screw is MMSO-07035-F.

Large quantities of these custom made parts would be best supplied on a 12 month blanket purchase order basis. The Blanket Order concept allows the customer to access the large quantity cost savings without paying upfront for the entire large quantity order. Instead we take on the burden of carrying the bulk inventory and only release the parts as needed, or often on a pre-scheduled basis provided by the customer.
