Project Description

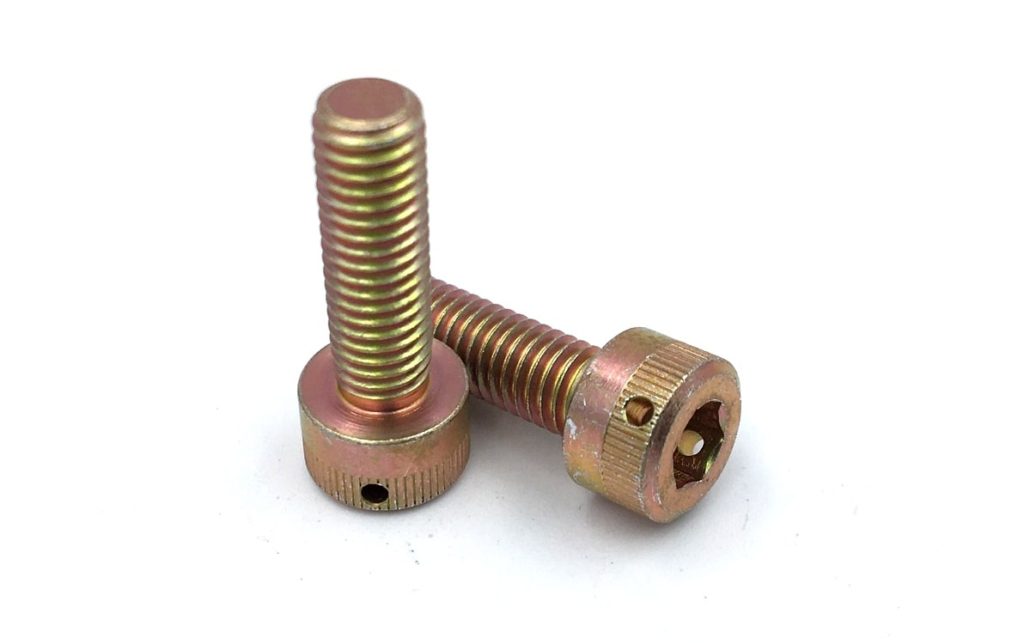

These custom class 12.9 metric aerospace screws with cad plated finish were manufactured domestically using DFARS compliant 4140 alloy steel material per ASTM A108. 1,100 pieces were produced measuring 5M X 0.8MM X 16.15MM +/0.03MM. 6G class thread was rolled and the head incorporated a cold formed socket drive, fine knurl feature, and a .050″ diameter through hole. Parts were run through a cadmium plating process at .0003/.0005″ type II, Class 2 per AMS QQ-P-416, followed by non destructive magnetic particle inspection testing per ASTM-E-1444. Full certs and FAIR was provided with the parts.

Project Details
